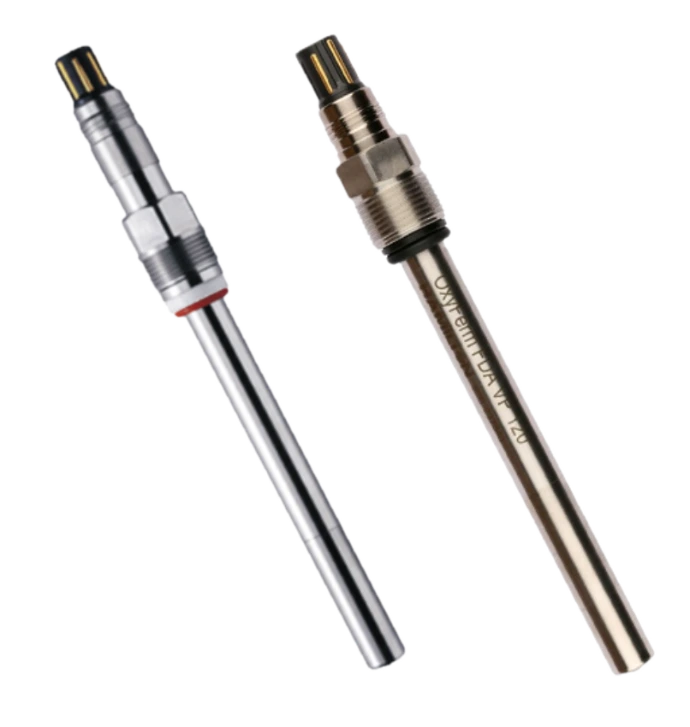

Probes
Winpact offers a standard selection of probes for every application including pH, DO, temperature, anti-foam, and ORP probes.

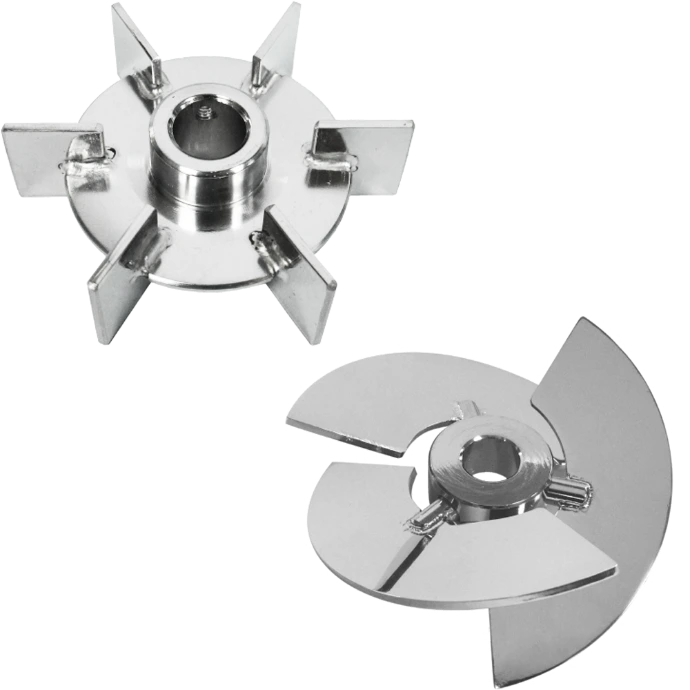

Impeller
Two standard agitation impellers are available for your selection. The Rushton Impeller offers high shearing force. The Pitched Blade Impeller offers moderate shearing force for your sensitive and fragile experiment. Foam-breaking Impeller also available to help you maintain foam free environment. 316 stainless steel construction. Customization is also available.

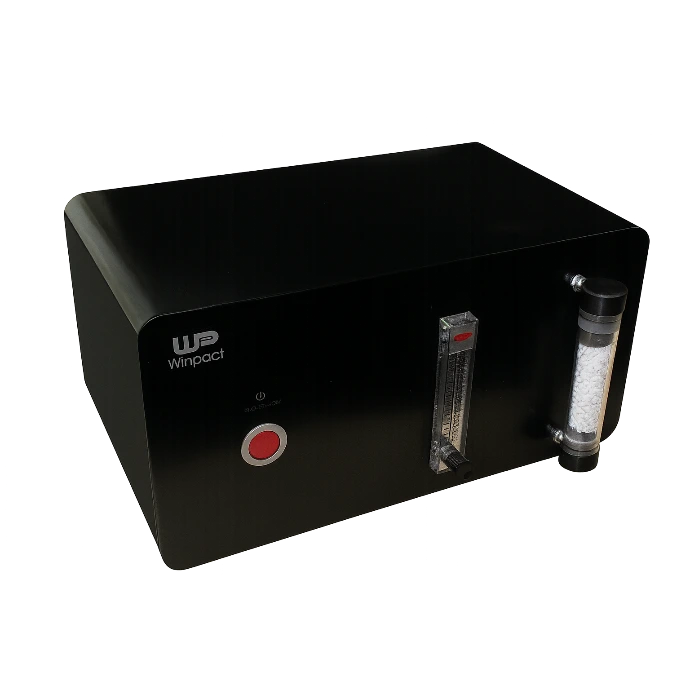

CO2/O2 off-gas analyzer
The Winpact CO2 /O2 off-gas analyzer, FS-O-GA, provides real-time measurement of carbon dioxide and oxygen concentration of the bioreactor exhaust gas. The CO2 concentration is determined using a self-calibrating non-dispersion infrared sensor, while an electrochemical sensor monitors the oxygen concentration. Using this information, the user can continuously monitor metabolism and analyze cell growth parameters.

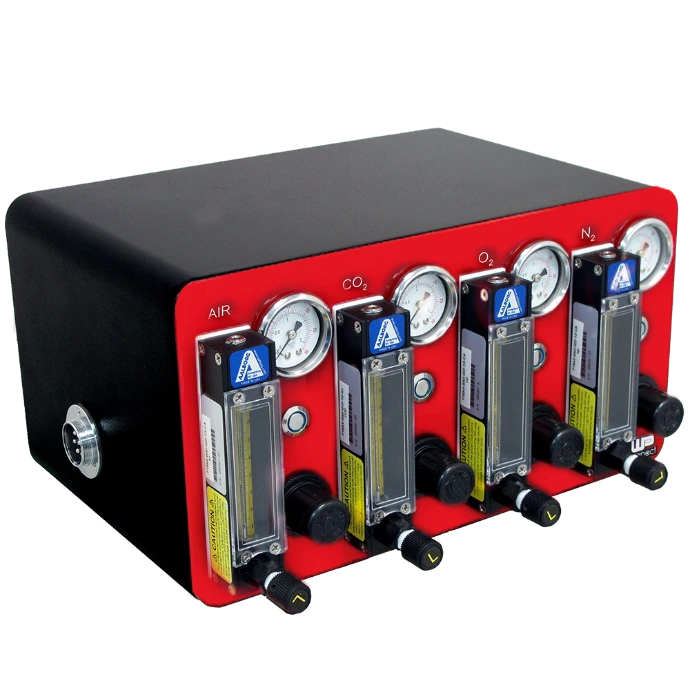

Gas Mixing Station
The Winpact Gas Mixing Station allows you to optimize cell growth condtions by independently supplying up to four gasses to the fermentation process. Parameters such as dissolved oxygen and pH can be controlled by adjusting the gas composition supplied to the system. Four manually adjusted flow meters control the flow rate of each gas, while the 4 solenoid valves automatically open or close in response to the culture conditions.

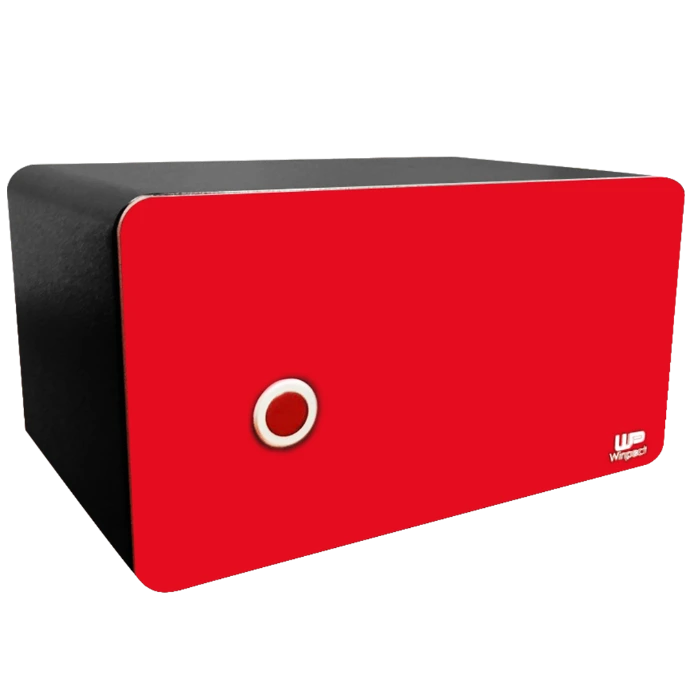

Gas Mixing Station with Mass Flow Controller
The automatic Mass flow controlled Gas Mixing Station, FS-O-GM-MFC, is designed to have more precise gassing control and quicker response. Supplying up to four gases allows you to optimize a variety of cell and microorganism applications. Automatic oxygen and nitrogen control is able to remain the desired dissolved oxygen (DO) level and create anaerobic environments easily. Moreover, carbon dioxide supply provides you an option to control the pH of culture conditions without liquid acid addition.
O2/Gas Enrichment
This Gas inlet control module is an optional device for your fermentation process. It enables the Winpact system to support your culture with addition of gas. The inlet control module consists of a gas pressure gauge, solenoid valve, and a rotameter. These components allow the external connection of gas to flow into the Winpact controller to be regulated either manually or automatically.
Media
Download
Additional information on the available Accessories and Optional Devices is available in the catalog.
Winpact Optional Devices Catalog.pdf
