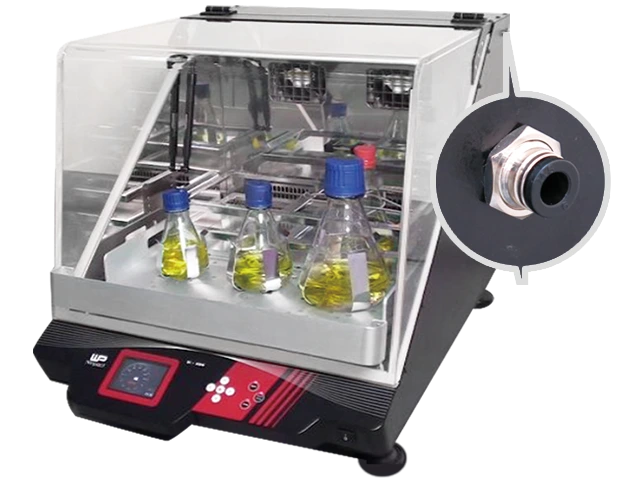

Winpact Shaking Incubator, SI-200 series

Combining precise temperature control with smooth, uniform shaking for consistent cell culture performance.

Request Quote

OverviewFeaturesSpecificationsMediaAccessoriesRequest a quoteDocuments

Overview

The SI-200 Shaking Incubator provides a stable, controlled environment for reliable cell growth, enzyme reactions, and general biological cultivation. Designed with uniform temperature distribution and smooth orbital shaking, it ensures consistent mixing and optimal aeration for a wide range of culture vessels. A robust, low-vibration drive system delivers quiet, dependable performance, while the intuitive control panel allows easy adjustment of speed, time, and temperature. Compact yet powerful, the SI-200 is an ideal solution for labs that need precise shaking incubation without sacrificing bench space or ease of use.

Features

  • Spill-resistant drainage channel protects the motor and internal circuitry from accidental liquid exposure
  • Multiple early error-detection systems ensure user safety and safeguard experimental integrity
  • Lab-verified superior temperature uniformity for consistent, reproducible incubation
  • Wide range of compatible racks, holders, sticky pads, and accessories to support diverse cell-culture vessels and workflows
  • Automatic shutdown protection in the event of system overheating
  • Adjustable-sensitivity G-sensor with imbalance detection and warning alerts
  • Programmable or continuous operation modes for maximum workflow flexibility
  • Brushless DC motor for quiet, long-lasting, low-maintenance performance
  • Hermetically sealed chamber minimizes vibration and noise while enhancing precise temperature control
  • Two-point temperature calibration for accurate performance across the full operating range

Specifications

Technical Specifications

Cat. No. SI-200
Platform size 18.1" x 18.1" (460 x 460 mm)
Shaking orbit Approx. 0.7" (19 mm)
Speed range 20–500 rpm
Speed increment 1 rpm
Communication port RS-485
External temperature probe PT-100
Heating temperature range Ambient +5°C to 65°C
Power 600 W
Temp accuracy and uniformity ± 0.25°C at 37°C
Timer 999 (hr) : 59 (min) / Continuous
Display 3.5" Color TFT LCD screen
Dimension (W x L x H) 23.2" x 32.3" x 20.9"
(Approx. 590 x 820 x 530 mm)
Weight 154.3 lb (70 kg)
Rated voltage 110 / 220 V~, 50 / 60 Hz, 6.3 A
Certification CE



Media



Accessories


Racks and Tray

Cat. No. Product Description Max. platform capacity
SI-200-01 Universal platform 1
SI-200-02 Adjustable angle tube rack (33 x 15 ml) 4
SI-200-03 Adjustable angle tube rack (16 x 50 ml) 4
SI-200-04 Universal spring rack 2
SI-200-05 Sticky pad platform 1
SI-200-06 Universal cushioned crossbar platform 1
PPL-04-SI-SI-200-3 Sticky pad 20 x 20 cm 4

Microplate and Flask Holders

Cat. No. Product Description Max. platform capacity
SI-200-07 Microplate holder 9
SI-200-08 Flask holder, 50 ml 52
SI-200-09 Flask holder, 125 ml 25
SI-200-10 Flask holder, 250 ml 25
SI-200-11 Flask holder, 500 ml 16
SI-200-12 Flask holder, 1000 ml 9
SI-200-13 Flask holder, 2000 ml 5
SI-200-01 Universal platform Universal platform
Cat. No.: SI-200-01 		SI-200-05 Sticky pad platform Sticky Pad platform
Cat. No.: SI-200-05
SI-200-02 Adjustable angle tube rack 33 x 15 ml Adjustable angle Tube Rack
(33 x 15 ml)
Cat. No.: SI-200-02
* tube not included 		SI-200-06 Universal cushioned crossbar platform Universal cushioned crossbar platform
Cat. No.: SI-200-06
SI-200-03 Adjustable angle tube rack 16 x 50 ml Adjustable angle Tube Rack
(16 x 50 ml)
Cat. No.: SI-200-03 		SI-200-07 Microplate holders Microplate holders
Cat. No.: SI-200-07 (Plataforma no incluída)
SI-200-04 Universal Spring Rack Universal Spring Rack
Cat. No.: SI-200-04 		SI-200-08~13 Flask holders Flask holder
Cat. No.: SI-200-08~13


Request a quote

Our team of experts can recommend a system tailored to your laboratory needs and application. Please contact us using this link.


Documents

 Winpact Catalogue
